HDMI 2.0 光纖纜線 20M
立即來電諮詢 ☎ 02-8228-1638

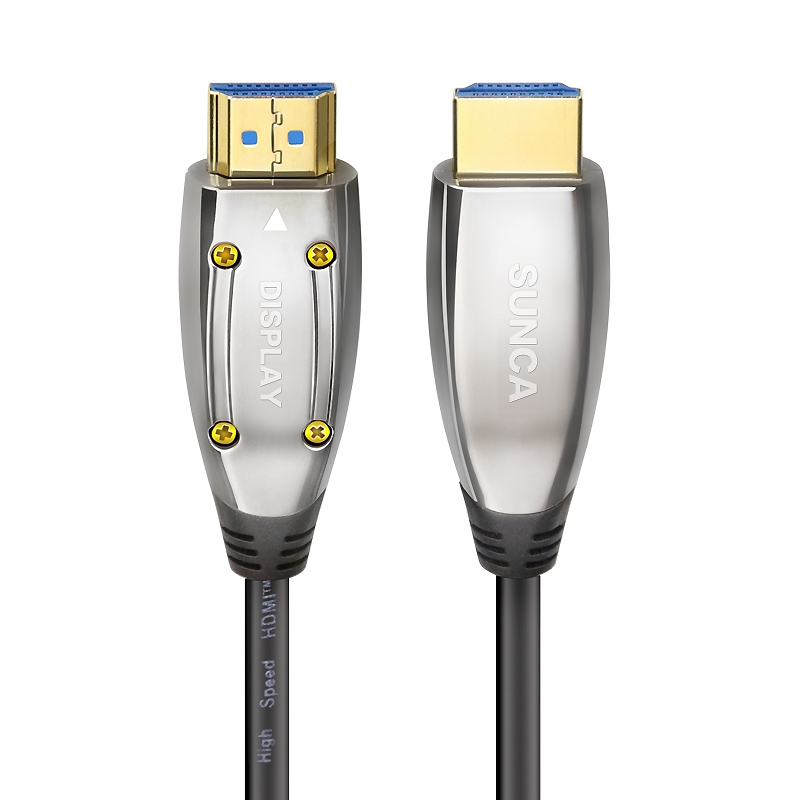

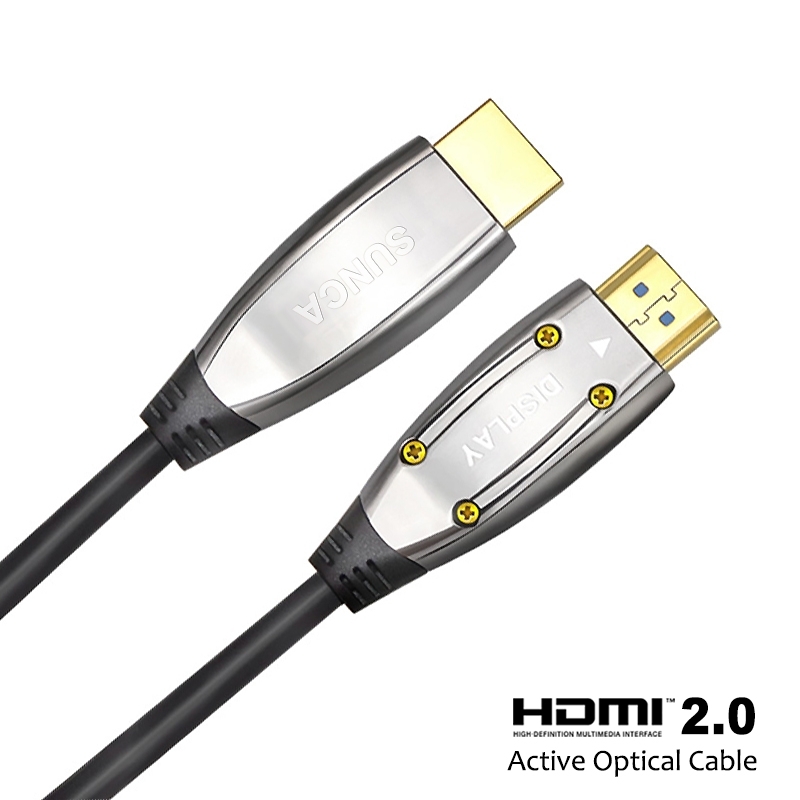

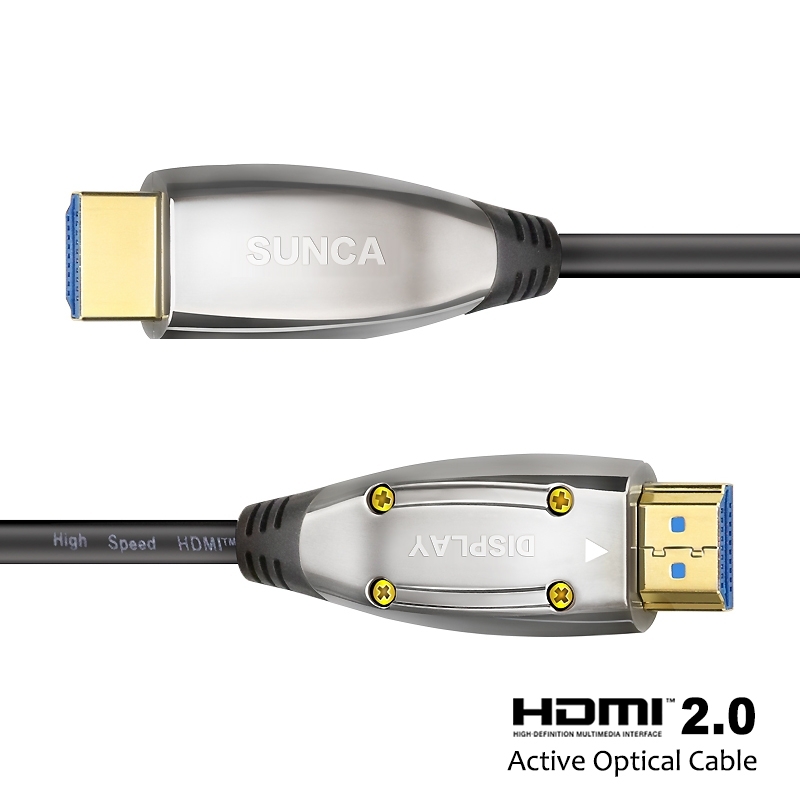

HDMI 2.0 AOC CABLE
HDMI 2.0 active optical cable(AOC) is used to extend the transmission distance between HDMI source and sink devices.
The transmission distance can be up to 150M (492ft) through a hybrid cable consisting of optical fibers and copper wires.The high-speed TMDS signals are transmitted through the optical multimode fibers,while the low frequency control signals are transmitted through the copper wire.
To support the new HDMI2.0 specification,HDMI 2.0 AOC is now compliant with Blu-ray players and TV sets supporting 4K display resolutions that are going to come to the market.
With advanced optical engine embedded,it is feasible to connect any HDMI devices such as Blu-way,dvd,projectors,video games,computers and mobile to enjoy the high quality display.
2. Plug and play,no external power supply or signal amplifier
3. Support 18 Gbps bandwidth (single channel 6 Gbps)
4. Support 4:4:4 4K@60Hz 3D
5. Support HDCP/EDID/CEC/DDC
6. Supply voltage：5.0V
7. Power Consumption：≤250mmW
8. Cable：Hybrid type with 50/125um fiber and copper wire OD:4.0-5.2mm
9. Cable length：10m/15m/20m/25m/30m/50m/60m/80m/100m/150m/Customize
Product application ：
2. LED signboards in streets and in stadiums
3. Medical Imaging Equipment
4. Airplane On-board Video System
5. Home Theater,Projector
6. Blue-ray, 3D video, Set-up box, DVR, Game Consoles and Computer
8. TV Broadcast Station
9. Conference Room Video Equipment
10. Security systems
11. Engineering wiring systems
Cable mechanical and environmental performance ：
2. Pressure Resistance：Long term 2000N/10cm, Short term 3000N/10cm
3. Cable Bending Radius ≥ 10mm X 1 turn
4. Operating Temperature -20~ 70°c

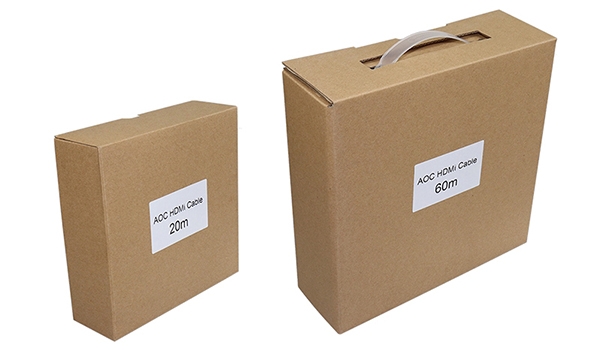

Packaging & Delivery
Carton size: 210x210x50mm
Carton size: 240x240x100mm(Portable)
Carton size: 280x280x100mm(Portable)
